Cascading Style Sheets (CSS) is a style sheet language used to describe the presentation semantics (the look and formatting) of a document written in a markup language. Its most common application is to style web pages written in HTML and XHTML.

CSS is designed primarily to enable the separation of document content (written in HTML or a similar markup language) from document presentation, including elements such as the layout, colors, and fonts.

Three Different Types of Styles

When a browser reads a style sheet, it will format the document according to it. There are three different ways to add styles to your web page.

See Also: CSS How To | W3 Schools

1. Inline Styles

Inline Styles are added to a tag using the XHTML style attribute:

1	<p style="font-family: Arial, Helvetica, sans-serif; font-size: 18px; color: #FF0000;">This is an inline style.</p>

are another way of adding presentational markup directly into your pages
should be used only in special circumstances
will override all other styles

2. Internal Styles

Internal Styles can be placed within the <head> tag of your document and need to be called out with the <style> tag:

<head>

<title>Internal Styles Example</title>

<meta http-equiv="Content-type" content="text/html; charset=iso-8859-1" />

<meta http-equiv="Content-Language" content="en-us" />
<style type="text/css">

p { font-variant: small-caps; }
</style>

</head>

limited to the page in which they are contained
easier to write the styles as embedded styles before you move them to be a linked style
will override external styles

3. External Styles

External Styles are placed in a separate document that links to multiple pages as to control your styles globally:

<head>

<title>External Styles Example</title>

<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1" />
<link href="styles.css" rel="stylesheet" type="text/css" />

</head>

are linked to the pages via a <link> tag within the <head> tag
are applied to each page’s markup as the page loads
are contained in a text file, called a style sheet, and appended with a .css

The Rules of Style Rules

CSS Style Rules are how your CSS present your markup:

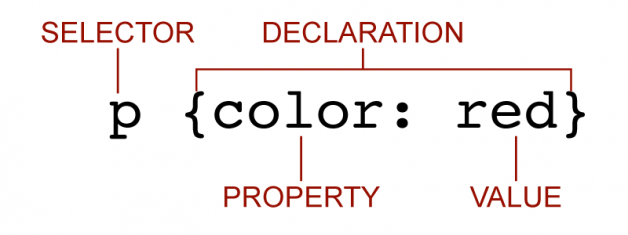

Anatomy of a Style Rule

There are four main parts to a style rule:

Selector: states which tag the rule selects
Declaration: states what happens when the rule is applied and is made up of properties and values
Property: states what is to be affected
Value: states what the property will be set to

See Also: CSS Syntax | W3 Schools

Multiple Declarations

Style Rules can have more than one declaration:

p {
font-family: Arial, Helvetica, sans-serif;
color: #85898A;
font-size: 12px;
}

Multiple Selectors

Multiple Selectors can be grouped for a single rule:

h1, h2, h3 {
font-family: Arial, Helvetica, sans-serif;
color: #85898A;
font-size: 12px;
}

In this case h1, h2, h3 have all be defined with the same font & color by using multiple selectors.

See Also: CSS Selectors | W3 Schools

Multiple Rules

Let’s say that you want to give h1, h2, h3 different margin values.

You would create multiple rules to do so that would also be applied:

h1 {
margin-top: 10px;
margin-bottom: 8px;
}
h2 {
margin-top: 5px;
margin-bottom: 8px; }
h3 {
margin-top: 3px;
margin-bottom: 8px;
}

Contextual Selectors

Contextual Selectors are selectors that use more than one tag name in the selector.

1
2
3

p em {
color:#F20017;
}

<p>Our mission is to develop and present your brand to a wide range of clientele via <em>logo design</em>, <em>marketing collateral</em>, <em>advertising</em> and <em>dynamic publishing</em> to the world wide web.</p>

With this contextual selector, I have made the <em> tags within my <p> tags a different color.

Inheritance

Inheritance involves passing something down from ancestors to descendants:

body {
font-family: Arial, Helvetica, sans-serif;
color: #85898A; background-color: #FFF;
margin: 0px;
padding: 0px;
}

In this example we can see that the <body> tag, the top most ancestor, will pass down properties listed in the rule to its descendants—called inheritance.

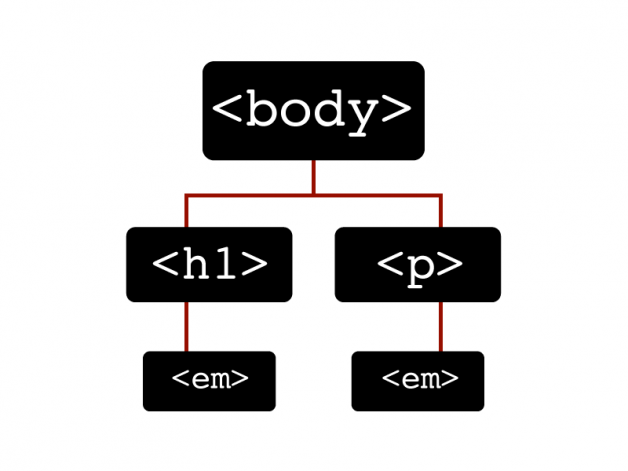

The Cascade

Rules will cascade down from one level of the hierarchy to the next:

The Cascade of Cascading Style Sheets

Understanding the cascade will help you write your style sheets in the most economically organized way. Organizing your style sheets with the proper cascade will also enable them to be edited much more easily.

Matching Declarations: as the page loads, the browser looks at every tag in the page to see if the rule matches
Sorting Order: If a matched property is defined again, the browser will update the value in the order it is declared
Specificity: the rule that is more specific wins

Classes & IDs

Classes can be defined and reused multiple times in your document:

1	<p class="redtext">Text is red</p>

You can then give them different styles:

1	.redtext { color: red; }

1	p.redtext { color: red; }

ID Selectors can be defined as a unique selector and can be used only once per page:

<ul id="sub-navigation-items">
<li><a href="#">Mission</a></li>
<li><a href="#">Process</a></li>
<li><a href="#">Team</a>
</li>
</ul>

You can then give them different styles:

#sub-navigation-items {
border-right: 1px solid #949ca1;
border-bottom: 1px solid #949ca1;
border-left: 1px solid #949ca1;
padding: 5px 5px;
margin: 0px;
}
